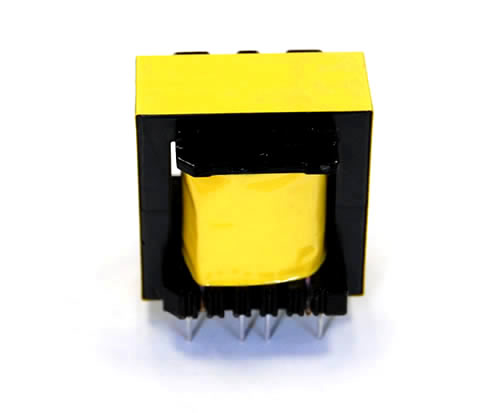

EE型（高頻變壓器）
特點及應用范圍：
具有使用范圍廣、工作頻率高、工作電壓范圍寬、輸出功率大等特點。廣泛應用于開關電源、安防系統、計算機，電子鎮流器及家用電器等。
產品序號及參數：
|
序號 |
針數 |

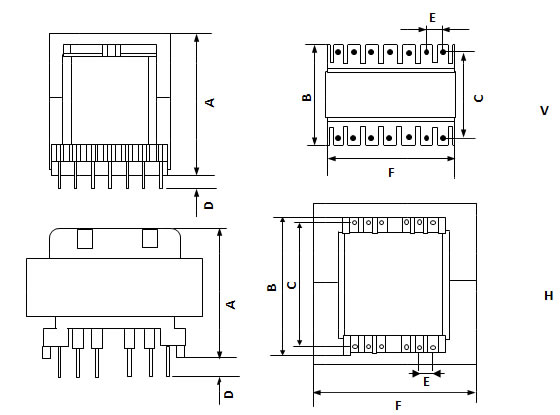

尺寸 | ||||||
|
A |
B |
C±0.5 |
D±0.5 |
E±0.5 |
F |
TYPE | ||
|
XC-EE1001 |
8 |
11.5 |
10.4 |
8 |
4 |
2.5 |
10.2 |
V |
|
XC-EE1003 |
8 |
10.7 |
12.4 |
10.3 |
4 |
2.5 |
10.2 |
H |
|
XC-EE1302 |
10 |
12.2 |
12 |
8.5 |
4 |
2.5 |
13 |
V |
|
XC-EE1303 |
10 |
14.5 |
12.2 |
8.5 |
4 |
2.5 |
13 |
V |
|
XC-EE16 |
8 |
14.5 |
13.6 |
11 |
4 |
3 |
16 |
H |
|
XC-EE1601 |
6 |
14.8 |
12.5 |
9 |
4 |
2.5 |
16 |
V |
|
XC-EE1609 |
8 |
14.8 |
13.5 |
11 |
4 |
3 |
16 |
H |
|
XC-EE1602 |
10 |
13.4 |
15.1 |
13 |
4 |
2.5 |
16 |
H |
|
XC-EE1602-1 |
10 |
15.5 |
13 |
10.5 |
4 |
2.5 |
16 |
V |
|
XC-EE1902-1 |
8 |
13 |
16 |
13 |
4 |
4.8 |
19 |
H |
|
XC-EE1901-1 |
10 |
13 |
17.5 |
12.6 |
4 |
3.05 |
20 |
H |
|
XC-EE1904 |
10 |
10 |
16 |
10 |
4 |
4 |
19 |
V |
|
XC-EE2201 |
10 |
19 |
16 |
10 |
4 |
4 |
22 |
V |
|
XC-EE2501 |
8 |
21.6 |
17.2 |
12 |
4 |
5 |
25 |
V |
|
XC-EE2502 |
10 |
21.6 |
20.2 |
15 |
4 |
5 |
25 |
V |
|
XC-EE2520 |
10 |
17 |
21.2 |
16 |
4 |
5 |
25 |
H |
|
XC-EE2801 |
10 |
23 |
21.8 |
17.5 |
4 |
5 |
28 |
V |
|
XC-EE3003 |
12 |
17.8 |
28.9 |
25 |
4 |
5 |
30 |
H |
|
XC-EE3301 |
12 |
31 |
28.8 |
22.8 |
4 |
5 |
33 |
V |
|
XC-EE4001 |
12 |
35 |
28 |
22.6 |
4 |
5 |
40 |
V |
|
XC-EE4002 |
14 |
28.3 |
32 |
25.8 |
4 |
5 |
40 |
H |
|
XC-EE4005 |
14 |
27.9 |
33.5 |
25.8 |
4 |
5 |
40 |
H |
|
XC-EE4202 |
12 |
45 |
39 |
32.2 |
4 |
5 |
42 |
V |
|
XC-EE4203 |
16 |
38.8 |
43.2 |
35.5 |
4 |
5 |
42 |
H |
|
XC-EE5501 |
14 |
48 |
55 |
40 |
4 |
5 |
55 |
H |
|
XC-EE5502 |
20 |
51 |
55 |
44 |
4 |
5 |
55 |
H |
|
XC-EE6501 |
20 |
67.5 |
54.6 |
45.5 |
4 |
5 |
65 |
V |
|
XC-EE6502 |
14 |
54 |
65 |
48 |
4 |
5 |
65 |
H |
注：此系列器件可根據客戶要求設計制作 上一個產品：PQ型（高頻變壓器）
